Maze Review

The class PD contains integer x and y coordinates and a String direction.

The string can be “up”, “down”, “left”, “right”, or “end”.

The coordinates are in traditional math coordinates, so “up” means increase the y coordinate.

public class PD {
   private int x, y; private String d;
   public PD (int x, int y, String d) {
    this.x = x; this.y = y; this.d = d;
   }
   public int getX() { return x; }
   public int getY() { return y; }
   public String getDir() { return d; }
}

Quiz

A Maze is an ArrayList<PD>. Write the following methods for the Maze class.

  1. public void clean() method in Maze: removes any PD that has “end” as its direction.

  2. public PD next(PD pos): follow the directions given in pos to find the next spot PD in the maze. If there is none, return null. You may assume there is at most 1 point in the maze in the direction you are going (but it is more interesting to find the closest one).

    Example: Maze has only A = (5,2,“up”) and B = (5,9,“right”) then calling next(A) gives B. So go in the “up” direction from A until you hit another “PD” in the maze. Calling next(B) would return null, since there is no point to the right of B in the maze.

    Check the whole maze list before giving up.

    Plan: go through the list of PD in the maze, find the next one in the given direction that is closest.

  3. public ArrayList<PD> solve(int startx, int starty): give the sequence of all PD’s from (startx,starty) to “end”. You are guaranteed there is a PD at the starting coordinates. If the maze is not solvable, return as far as you get (so it will not end at the “end”).

    This is a Maze:

     PD(x=8, y=-2, d="left")
 PD(x=5, y=3, d="right")
 PD(x=1, y=-1, d="end")
 PD(x=8, y=3, d="down")

    and a solution to the maze:

     PD(x=5, y=3, d="right")
 PD(x=8, y=3, d="down")
 PD(x=8, y=-2, d="left")
 PD(x=1, y=-1, d="end")

Example

Maze:

PD(15,-9,left)
PD(9,-9,end)
PD(10,-2,up)
PD(5,-2,right)
PD(15,1,down)
PD(10,1,right)
PD(5,3,down)

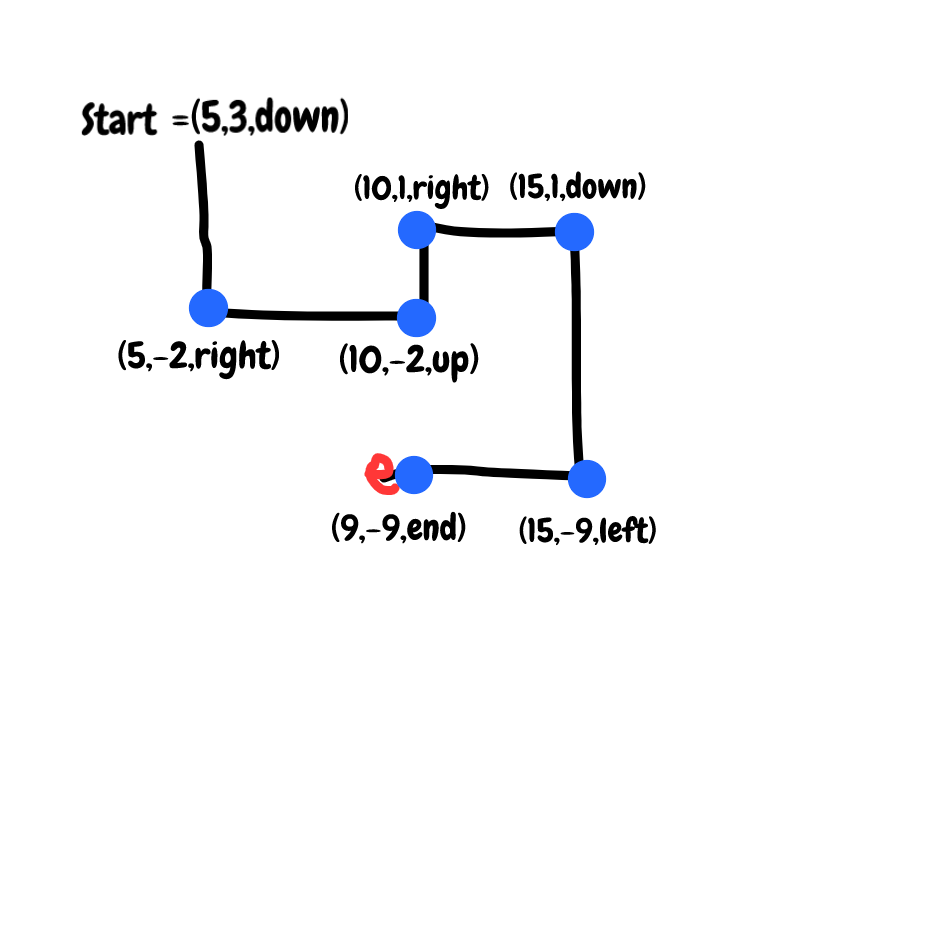

Maze Illustration

solve(5,3) gives

PD(5,3,down)
PD(5,-2,right)
PD(10,-2,up)
PD(10,1,right)
PD(15,1,down)
PD(15,-9,left)
PD(9,-9,end)
